LARGE
FORMAT SCANNERS

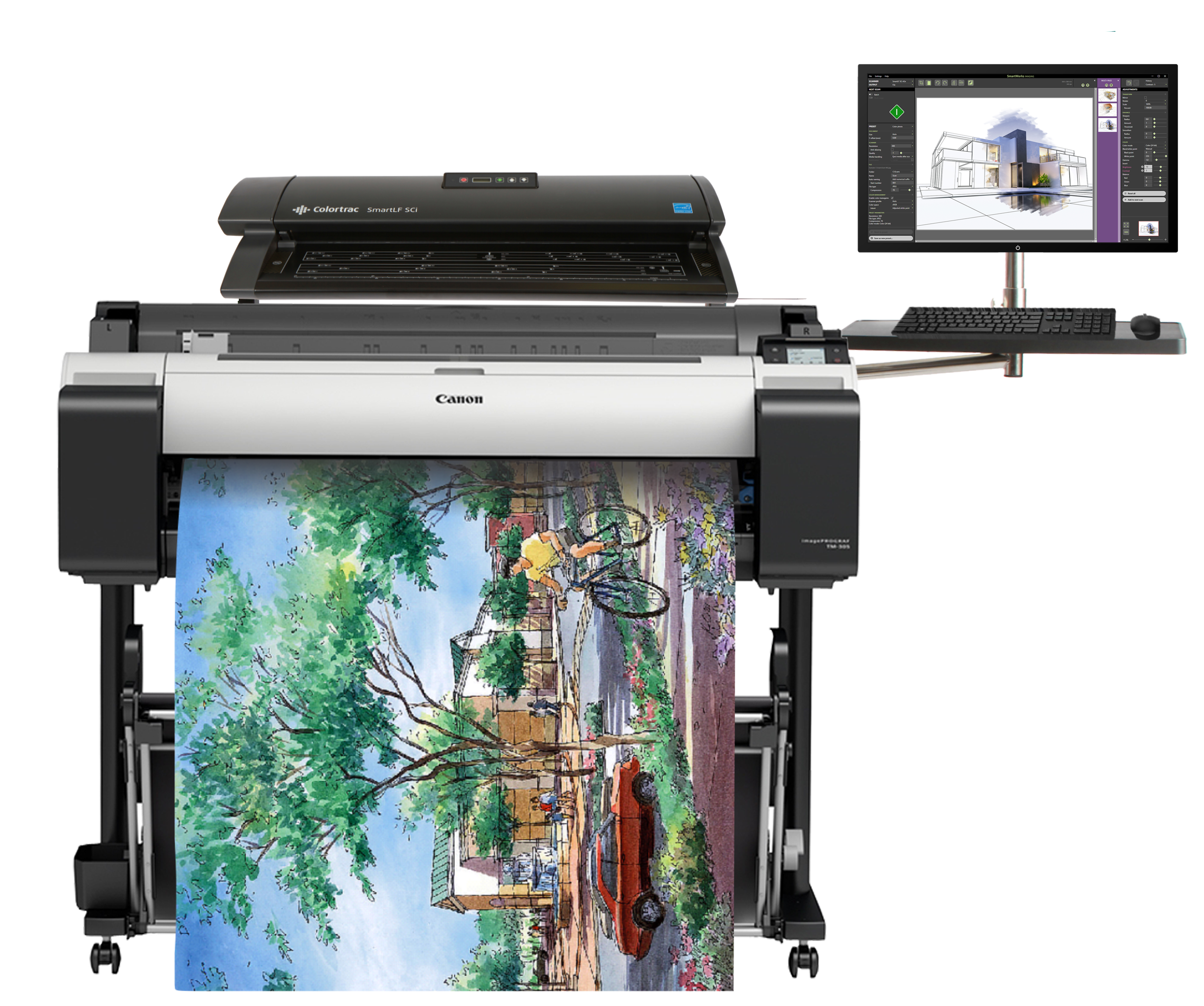

Colortrac SmartLF Flex SCi 25c Systems
The compact Colortrac Flex SCi 25c System includes the REVOLUTIONARY SmartLF SCi 25c scanner from Colortrac. With higher quality imaging, higher scanning speed and SuperSpeed data transfer, the SmartLF SCi Series of scanners provides fast, high quality scans or copies of wide format maps, site plans, engineering drawings, blueprints, architectural renderings and many other technical documents.
Two models available:
SmartLF SCi 25c FLEX Pro
System includes:
- Colortrac SmartLF SCi 25c scanner
- SFP (single foot print) system rack
- Rocket II Controller, 4GB of RAM, 500 GB hard drive, USB3. Integrated 10/100/1000 Gigabit Ethernet, Full Size Keyboard & Mouse. Windows 10 64-bit
- Integrated 19″ Widescreen Flat Panel Display
- SmartWorks TOUCH
- 1-year on-site warranty
SmartLF SCi 25c FLEX Base
System includes:
- Colortrac SmartLF SCi 25c Xpress scanner
- SFP (single foot print) system rack
- SmartWorks TOUCH software
- 1-year on-site warranty
| SCi 25c Flex Base/Pro | SCi 36c Flex Base/Pro | SCi 42c Flex Base/Pro | |
|---|---|---|---|
| Optical Resolution | 1200 dpi | 1200 dpi | 1200 dpi |
| Extended Resolution | 9600 dpi | 9600 dpi | 9600 dpi |
| Max Scan Width | 25in (63.5cm) | 36in (91.4 cm) | 42in (106.7cm) |
| Max Media Width / Thickness | 27in (68.6cm) / 0.08” (2.0 mm) | 38in (96.5 cm) / 0.08” (2.0 mm) | 44in (111.6cm) / 0.08” (2.0 mm) |
| Scan Accuracy | +/-0.1% +/-1 pixel | +/-0.1% +/-1 pixel | +/-0.1% +/-1 pixel |
| Imaging Technology | 6 x CCDs each with red, green, blue and gray sensor lines. 48-bit color image capture, 16-bit grayscale image capture, black & white (panchromatic full spectrum) |
||
| Data Capture (color/grayscale) | 16-bit | 16-bit | 16-bit |
| Color Space | Raw RGB from scanner sRGB using SmartWorks EZ Touch Profiled RGB from SmartWorks Pro (SCi 42c Flex) | ||
| Scanning Accuracy | 13 ips | 13 ips | 13 ips |
| Scan Speed – 8-bit grayscale/mono (inch/sec) @200dpi |
6 ips | 6 ips | 6 ips |
| Paper Path | Face-up, front entry, rear exit or rewind to front | ||
| Interface | SuperSpeed USB 3.0 with upto 5Gb/sec transfer rate (using maximum 3m length cable) | ||
| Power Requirements | External power supply 100~240VAC auto-sensing +/-10%, 50-60Hz Scanner power consumption: | ||
| Included Software | SmartWorks TOUCH | SmartWorks TOUCH | SmartWorks Imaging Scan & Copy |
| Rocket Controller (Available on the Flex Pro only) |
Rocket Controller – 3.1Ghz core processor (64-bit Processing), 4GB of RAM (upgradable), 500 GB hard drive. Integrated 10/100/1000 Gigabit Ethernet, Full Size Keyboard & Mouse. Windows 10 Professional 64-bit – optional touchscreen available |
||
| Warranty | 1-Year Onsite | 1-Year Onsite | 2-Year Onsite |
| SCi Flex Base Includes: SmartLF SCi 25, SCi 36 or SCi 42 scanner, external scanner power supply, USB 3 cable, document return guides, adjustable Repro Stand with keyboard tray and monitor mounting bracket, SmartWorks TOUCH (SC 25 & SC 36), SmartWorks Imaging Scan & Copy (SCi 42), Rocket scanner controller (Pro model only). The Repro Stand height is adjustable through four height variations allowing maximum printer heights between 39in (988 mm) and 45in (1143 mm) | |||
