Colortrac SmartLF SCi 25 Scanner

THREE versions available:

  • SCi 25m Monochrome captures wide dynamic range of b&w photos & CAD drawings at speeds up to 13 ips
  • SCi 25c Color adds wide color gamut scanning to the 25m with color scan speeds up to 6 ips
  • SCi 25e Enhanced Color adds enhanced wide color gamut scanning at speeds up to 12 ips

GET A QUOTE

KEY FEATURES:

  • 200% improvement of scan speeds at 200 dpi and 300 dpi
  • Control SmartWorks IMAGING right on the scanner (Tablet Optional)
  • Single Sensor: Unique Colortrac CIS modules
  • FireFly: SuperSpeed USB3
  • ClearView Innovative Dual LED lighting
  • WinSync Optimised Windows driver technology
  • ScanOnce Efficient scanning and copying workflow
  • SureDrive Single driven media pressure roller

The SmartLF SCi series scanners give you super fast, high quality scanning in a great new package. Compatible with SmartWorks Imaging and the new LINK software SmartLF SCi is the perfect choice for scanning or copying wide format maps, site plans, engineering drawings, blueprints, architectural renderings and many other technical documents.

The SmartLF I Series – great scanners made even better

The Colortrac SmartLF SCi series scanners are perfect for everyday scanning tasks. An A1 / D size document can be scanned in full color at 12 inches per second, only 1 inch per second slower than its black and white scan speed. Connection to the host computer is straightforward and uses a standard USB 3.0 cable which is supplied with the scanner.

SingleSensor Technology

Colortrac SmartLF SCi series scanners feature one-piece scanning sensors spanning the full scan width of the device. Only from Colortrac, the appropriately named SingleSensor combines sensors and illumination in a single scan line for unbeatable ‘all-over’ scan accuracy and best-possible document illumination. Simple and reliable, SCi series scanners deliver high-quality scanning at an affordable cost.

NEW SmartWorks Imaging

Optimized all the way through, SmartWorks Imaging is clearer and easier to navigate than SmartWorks Pro. With a faster performance, revised preset control, better printer drivers and a new multi-page thumbnail pop-out feature, SmartWorks Imaging is the perfect productivity partner for SmartLF SCi and SmartLF SGi large format scanners.

LINK Remote Control

Work smarter with LINK. This portable tablet app works with any computer already connected to the scanner and running SmartWorks Imaging to bring effortless control of the scanner to your fingertips. Use LINK to reduce body movement and to improve operator comfort while scanning.

Large Document Staging Area

SmartLF SCi scanners have a large, easy-to use staging platform that accepts documents for scanning face-upwards. Specifically designed to auto-detect the size of documents placed in the center of the scanner, documents can be loaded and prepared for scanning in just a few seconds. Documents conforming to standard drawing sheet sizes (manual mode) can be placed in the center or to the side depending on the choice of software. Magnetic paper guides are also provided ot make positioning easier. SCi 25 scanners have a maximum media width of 27” (686mm) and are able to scan documents and maps up to a thickness of 0.08″ (2 mm).

Dynamic Document Feed

Unlike scanners using staggered sensors SmartLF SCi benefits from a simplified pressure roller arrangement to ensure that the document always stays in contact with the optics. The rollers either side of the scan line and the active soft pressure roller running the length of the SingleSensor are all motor driven allowing the scanner to dynamically respond and actively work against optical disturbances caused by creases and uneven documents. This unique technology ensures that delicate or fragile media such as newspaper and old blueprints can be safely and accurately scanned without problem.

SuperSpeed PC Interface

SmartLF SCi 25 uses a SuperSpeed USB 3.0 digital interface that allows the scanner to work at full speed on full width documents or to scan smaller documents at higher resolutions more quickly. Improved productivity is easy to achieve with the time-saving innovations built into every Colortrac I series scanner.

INCLUDED SOFTWARE:

Colortrac SmartLF SCi 25 scanners include the NEW! SmartWorks TOUCH Scan/Copy/Email software that combines wide format scanning and copying in one very easy to use program and has full compatibility with wide format printers through standard Windows drivers. SmartWorks TOUCH is optimized for use with touch-screen monitors using a simple, intuitive user interface suitable for general office use.
SCi 25m SCi 25c SCi 25e
Upgradeable m ➔ c m ➔ e c ➔ e N/A
Optical Resolution 1200dpi 1200dpi 1200dpi
Extended Resolution Linear interpolation from 100 to 9600dpi in 1 dpi steps
Max Scan Width 25in (63.5cm) 25in (63.5cm) 25in (63.5cm)
Max Media Width 27in (68.6cm) 27in (68.6cm) 27in (68.6cm)
Max Media Thickness 0.08in (2mm) 0.08in (2mm) 0.08in (2mm)
Min Document Size 6.0in (152mm) x 6.0in (152mm) 6.0in (152mm) x 6.0in (152mm) 6.0in (152mm) x 6.0in (152mm)
Max Scan Length Depends on file format and software application. See scanner software information
Accuracy +/-0.1% +/-1 pixel +/-0.1% +/-1 pixel +/-0.1% +/-1 pixel
Auto Size Display Detects and displays the width of the document as it is loaded (mm or inches)
Imaging Technology SingleSensor SingleSensor SingleSensor
Data Capture (color/grayscale) 16-bit 48-bit/16-bit 48-bit/16-bit
Color Space N/A Raw RGB from scanner. sRGB using SmartWorks TOUCH. Adobe RGB and Profiled RGB from optional SmartWorks Imaging and SmartWorks Pro Raw RGB from scanner. sRGB using SmartWorks TOUCH. Adobe RGB and Profiled RGB from optional SmartWorks Imaging and SmartWorks Pro
Scan Speed 1-bit mono (in/sec) 8-bit grayscale @200dpi 13.00 13.00 13.00

Scan Speed 24-bit color (in/sec) @200dpi

N/A 6.0 12.0
Paper Path Face-up, front entry, rear exit or rewind to front
Face-up, front entry, front exit with optional Document Return Guide
Interface SuperSpeed USB 3.0 data transfer rates up to 85MB/sec
Optimised USB2 transfer rates up to 35MB/sec (using 2m USB cable supplied)
Power Requirements External power supply 100~240VAC auto-sensing +/-10%, 50-60Hz
Scanner power consumption: 53W scanning / 1.35W sleep/ 0.16W standby (scanner off, ext. power supply on)
Operating conditions 10oC – 35oC, 35% – 80% relative humidity non-condensing
Weight & Dimensions (WxHxD) Scanner: 40 lbs (18 kg) / 34.2 x 6.0 x 15 inches (87 x 15.2 x 38.1 cm)
Packed: 46 lbs (21 kg) / 40 x 9.3 x 20.1 inches (101 x 24 x 52 cm)
Operating System and Interface(s) Windows 10 and Windows 8.1, 32-bit and 64-bit architectures
Certifications ENERGY STAR qualified, CB, CE, CCC, FCC, UL, RoHS compliant
Included software SmartWorks Touch
Simple-to-use software for scanning, copying and printing. Intuitive interface designed for touch screens or mouse and keyboard
operation. Select the mode, choose the document type closest to the original and press go. All document types can be individually
modified.
Save to PDF, PDF/A, MPDF, JPEG, JPEG2000, PNG, AutoCAD DWF, TIFF, TIFF LZW, TIF-G4, MTIFF, PCX, BMP. Batch scanning, full preview and all Windows driven printers supported.
Optional Software SmartWorks Imaging – New, faster professional scanning product with image editing and extended internal printer drivers
SmartWorks Pro SCAN & COPY software – industry leading, professional scanning and color-copying software.
SmartWorks Pro SCAN software – industry leading, professional scanning software.
Accessories Floor Stand – includes Paper Catch Basket plus optional PC, Monitor, Keyboard and Mouse mounting kit.
Repro Stand – adjustable height to fit most popular Large Format printers. Includes Keyboard tray, PC & Flat screen monitor mounting kit. Optional Document Return Guide for front-feed, front-return capability.
Notes 1 Power requirements for SCi models
2 SmartLF SCi scanners and SmartWorks Pro software scanning at 9600dpi in any colour mode to a TIFF uncompressed file format is restricted to a scan width of 40mm (1.5”) and scan length not exceeding 160mm (6.3”). Scanning larger widths at 9600 dpi or scanning to other file formats is not possible
3 USB3 is required to achieve uninterrupted maximum scan speeds for all SCi series scanners at the ‘e’ upgrade level for originals wider than 24″ scanned above 200dpi. Colortrac recommends the software speed or quality settings be used to eliminate stop/start and maximise scan image quality at higher scan dpi/width combinations if a USB3 connection is not available
4 Thick documents up to 2mm must be flexible. Colortrac does not guarantee quoted speeds for thick media. Thick media should be scanned at reduced speeds to obtain optimal image quality. For heavy and/or thick materials the operator may need to support the document as it enters and exits the scanner. For larger sizes of heavy and/or thick media Colortrac recommend the scanner be placed first on a flat surface and the operator supports the document as it enters and exits the scanner. Colortrac recommends the paper return guide is removed when using heavy and/or thick media in the scanner

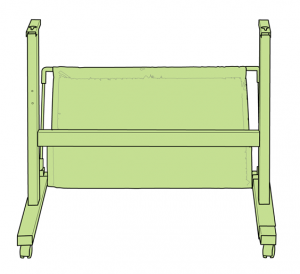

Floor Stand

Minimizes the installed footprint of your wide format scanner and positions the document feed at a comfortable and convenient height. A basket catches scanned documents as they are ejected from the scanner and collects them at the back of the scanner for recovery later.

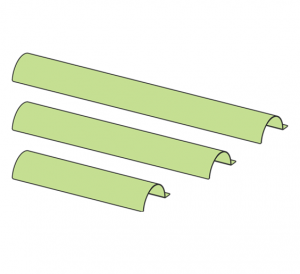

Document Return Guide

The SmartLF SCi scanners have an optional Document Return Guide that allows users to have scanned documents directed over the top of the scanner to the front for easy retrieval. It also allows users to place the scanner on desktops or on Floor Stands against walls to minimize the overall footprint and to maintain the operators ease of use when space around the scanner is restricted.

PC and Flat Screen Mounting Option

PC and LCD flat screen mounting option combines wide format scanner and computer into a self-contained scan processing station that can be moved around an office as required. The PC and flat screen mounting kit requires the floor stand.

PC, flat screen, keyboard & mouse are optional

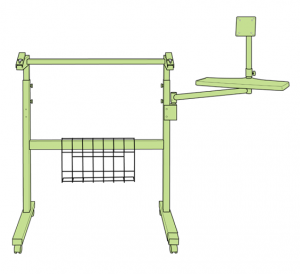

Repro Stand

An alternative floor stand that holds the scanner above most popular large format printers including products from HP, Canon, Epson and other printer manufacturers. Repro Stand conveniently holds a PC, flat screen and mini-keyboard and minimizes the combined footprint of scanner and printer creating a practical, high productivity workstation. Scanner height is adjustable through four height settings.

Maximum height of the printer that can be accommodated under the Repro Stand is 45.5″ (115.5 cm). There is no limit to the width of the printer.

PC, flat screen, keyboard & mouse are optional

Document Carrier Sheets

Available in ARCH D/A1 and ARCH E/A0 size, with black or white backing sheet. Hinged on the short side.

  • Scan and protect dry, ageing and/or valuable documents.
  • Protect the scanner glass from documents contaminated with storage dirt and dust.
  • Scan badly torn documents or documents with missing edges.
  • Scan multiple lightweight and/or odd shaped originals & upholstery patterns.
  • Scan transparencies more effectively.
  • White backing sheet improves light reflection and scan quality.
  • Black backing sheet prevents the back side image appearing underneath the image of the front side when scanning newspapers, double-sided maps and other semi-transparent originals printed on both sides.

SCi 25 scanners can be customer-upgraded to higher models using a simple software utility available via email from your dealer. No tools are needed.
