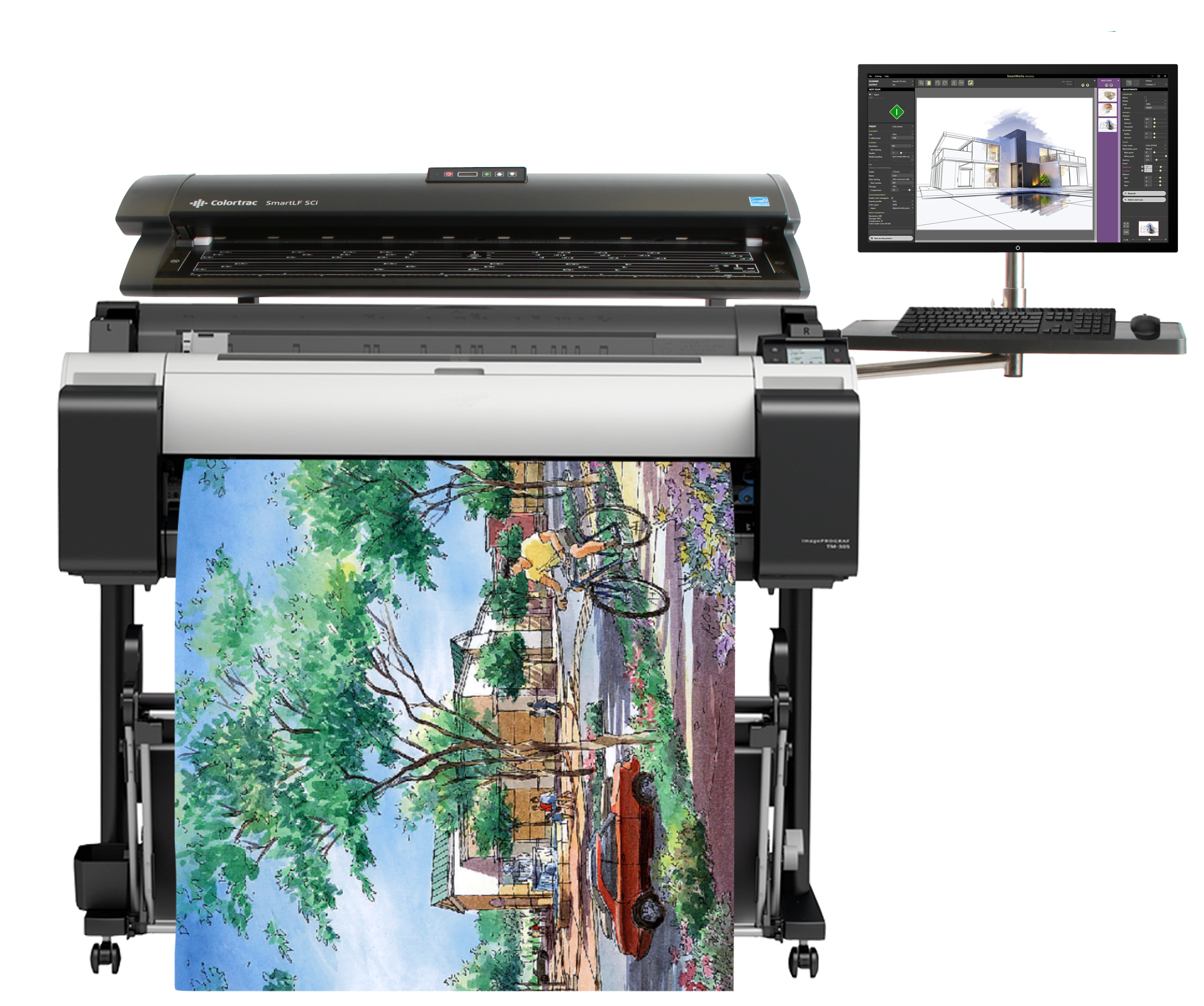

Colortrac SmartLF Flex SCi 42c Systems

The Flex SCi 42c system includes the REVOLUTIONARY SmartLF SCi 42c scanner from Colortrac. With higher quality imaging, higher scanning speed and SuperSpeed data transfer, the SmartLF SCi 42 provides fast, high quality scans or copies of wide format maps, site plans, engineering drawings, blueprints, architectural renderings and many other technical documents.

Two models available:

SmartLF SCi 42c Flex PRO

System includes:

  • Colortrac SmartLF SCi 42c scanner
  • SFP (single foot print) system rack
  • Rocket II Controller, 4GB of RAM, 500 GB hard drive, USB3. Integrated 10/100/1000 Gigabit Ethernet, Full Size Keyboard & Mouse. Windows 10 64-bit
  • Integrated 19″ Widescreen Flat Panel Display
  • SmartWorks Imaging Scan & Copy software
  • 2-year on-site warranty

SmartLF SCi 42c Flex BASE

System includes:

  • Colortrac SmartLF SCi 42c scanner
  • SFP (single foot print) system rack
  • SmartWorks Imaging Scan & Copy
  • 2-year on-site warranty
SCi 25c Flex Base/Pro SCi 36c Flex Base/Pro SCi 42c Flex Base/Pro
Optical Resolution 1200 dpi 1200 dpi 1200 dpi
Extended Resolution 9600 dpi 9600 dpi 9600 dpi
Max Scan Width 25in (63.5cm) 36in (91.4 cm) 42in (106.7cm)
Max Media Width / Thickness 27in (68.6cm) / 0.08” (2.0 mm) 38in (96.5 cm) / 0.08” (2.0 mm) 44in (111.6cm) / 0.08” (2.0 mm)
Scan Accuracy +/-0.1% +/-1 pixel +/-0.1% +/-1 pixel +/-0.1% +/-1 pixel
Imaging Technology 6 x CCDs each with red, green, blue and gray sensor lines. 48-bit color image capture, 16-bit grayscale image capture, black & white
(panchromatic full spectrum)
Data Capture (color/grayscale) 16-bit 16-bit 16-bit
Color Space Raw RGB from scanner sRGB using SmartWorks Touch Profiled RGB from SmartWorks Imaging (SC 42c Flex)
Scanning Accuracy 13 ips 13 ips 13 ips
Scan Speed – 8-bit grayscale/mono
(inch/sec) @200dpi
6 ips 6 ips 6 ips
Paper Path Face-up, front entry, rear exit or rewind to front
Interface SuperSpeed USB 3.0 with upto 5Gb/sec transfer rate (using maximum 3m length cable)
Power Requirements External power supply 100~240VAC auto-sensing +/-10%, 50-60Hz Scanner power consumption:
Included Software SmartWorks TOUCH SmartWorks TOUCH SmartWorks Imaging Scan & Copy
Rocket Controller (Available
on the Flex Pro only)
Rocket Controller – 3.1Ghz Dual-core processor (64-bit Processing), 4GB of RAM (upgradable), 500 GB hard drive. Integrated 10/100/1000 Gigabit Ethernet, Full Size Keyboard & Mouse. Windows 10 Professional 64-bit – optional touchscreen available
Warranty 1-Year Onsite 1-Year Onsite 2-Year Onsite
SCi Flex Base Includes: SmartLF SCi 25, SCi 36 or SCi 42 scanner, external scanner power supply, USB 3 cable, document return guides, adjustable Repro Stand with keyboard tray and monitor mounting bracket, SmartWorks TOUCH (SCi 25 & SCi 36), SmartWorks Imaging Scan & Copy (SCi 42), Rocket scanner controller (Pro model only). The Repro Stand height is adjustable through four height variations allowing maximum printer heights between 39in (988 mm) and 45in (1143 mm)
